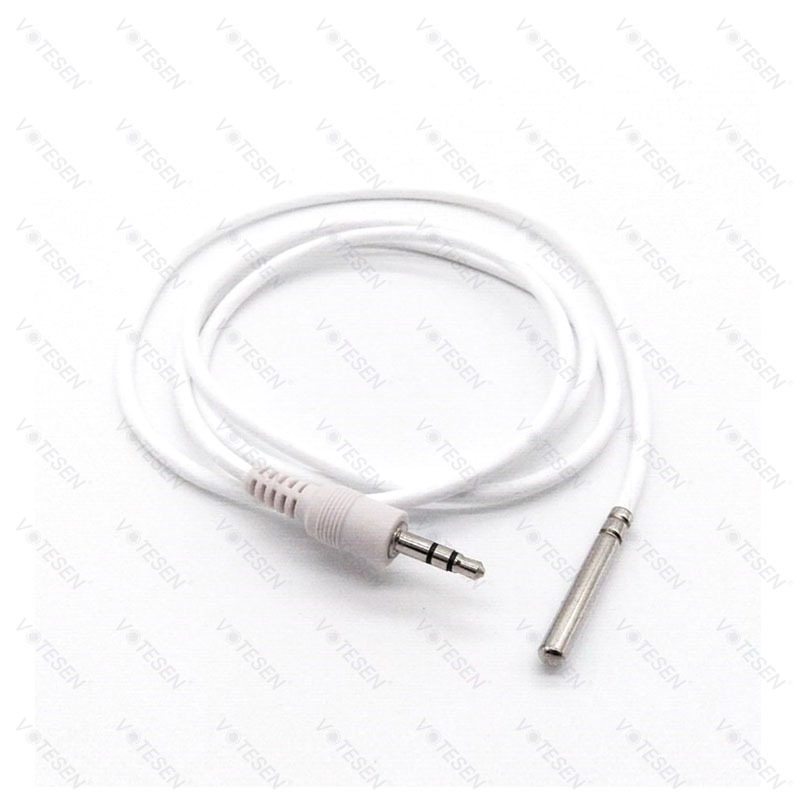

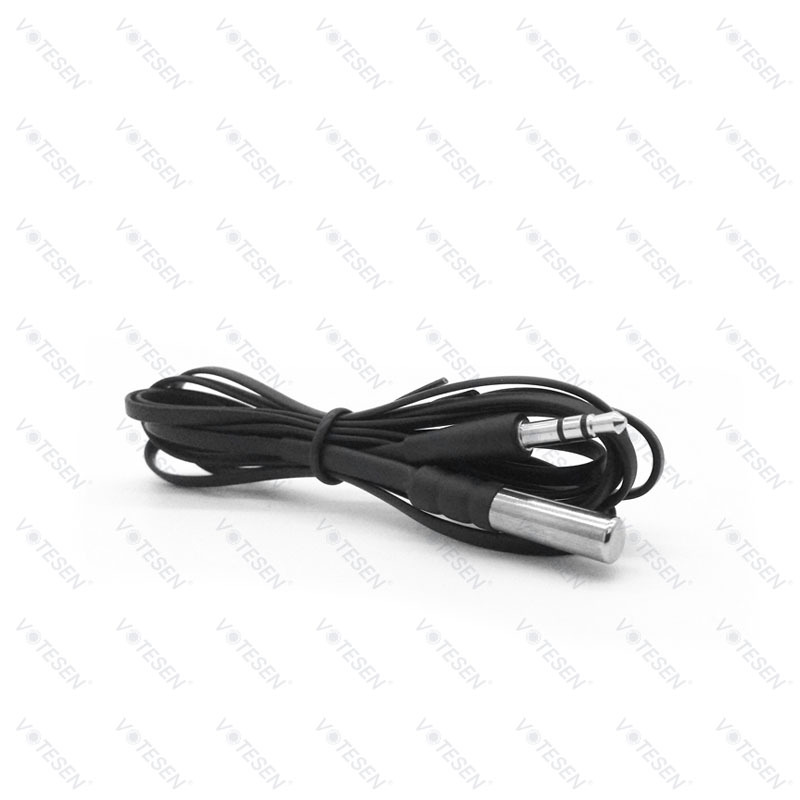

3.5mm Earphone Jack Digital Temperature Sensor Intelligent DS18B20 Temperature Sensor
Waterproof DS18B20 Digital Temperature Sensor With RJ45 Connector
DS18B20 is a commonly used digital temp sensor, and its output is a digital signal. It has the characteristics of small size, low hardware overhead, strong anti-interference ability, and high precision.
VTS200 is a DS18B20 digital temperature sensor by VOTESEN, which is composed of the original DALLAS chip, housing temperature probe, required cable, and connector. It measures temperature accurately, is strongly waterproof, and has a long service life. It is without external components, featuring the unique single bus interface.
| Digital Chip | 100% Original DALLAS |
| Power Supply | 3.0~5.5VDC |
| Temperature Range | -55~+125℃ |
| Probe Dimension | Diameter:¢6~¢9mm, length:10mm~1000mm |
| Cable Length | 0.5M, 1M, 2M etc. Customization available. |
| Accuracy | -10~+85℃, the accuracy is ±0.5℃ |
| Resolution Ratio | 9~12 bit |
| Probe Material | Stainless Steel, ABS Plastic probe;Customization available. |
| Cable Material | PVC,Silicone,PTFEetc,Customization available. |
| Connector | 3.5mm earphone, 2.5mm jack connector; Customization available. |
| Connection Mode | Black: GND, Yellow: DATA, Red: VDD+ |
| Wires | 2 wires(Parasite Powered) or 3 wires |
1.Digital Signal Output
One Wire interface requires only one port pin for communication. Requires no external components, making it ideal for easy integration with the digital temperature sensor.
2.High Accuracy
Operating temperature range: -55°C to +125°C (-67F to +257F), ±0.5°C accuracy from -10°C to +85°C, ensuring reliable performance for the digital temp sensor.
3.Data Line Power Supply
Can be powered from the data line. Power supply range is 3.0V to 5.5V, supporting stable operation of the temperature probe.
4.Fast Response
Thermometer resolution is programmable from 9 to 12 bits, enabling quick and precise temperature readings for the digital temperature sensor.
5.Various Probe Design
Probe dimension: 530mm; 630mm; 6*50mm or customized to any size you want, providing flexible options for your temperature probe needs.
Send us the below details and we will be able to assist you based on your requirements.
1. Operation Temperature range
2. Application
3. Probe Dimension
4. Types of Probe
5. Cable Length
5. Cable Connector
6. Any other specific request
DS18B20 temperature sensor is mainly used in cold storage temperature monitoring, drug GMP monitoring system, telecom machine room monitoring, beer production, building automation, warehouse temperature monitoring, environmental monitoring, process monitoring temperature, air conditioning monitoring, incubation temperature control, breeding temperature measurement, the greenhouse temperature monitoring, etc.
ABOUT US
VOTESEN is a leading sensor manufacturer located in Xi’an, one of China’s key sensor industry hubs. Founded in 2018, VOTESEN specializes in the research, development, customization, and sales of high-quality sensors and transmitters including temperature sensors, pressure sensors, and environmental sensors. Our products have earned CE and RoHS certifications, reflecting our commitment to quality and safety. Serving over 150 countries worldwide, we focus on delivering reliable, innovative sensor solutions tailored to a wide range of industries from industrial automation to aerospace. Our ongoing mission is to be the preferred global provider of sensor technologies and technical services, ensuring customer satisfaction through superior products and professional support.
Discover the difference with VOTESEN’s Intelligent Digital Temperature Sensor—engineered for precision, durability, and easy integration. Contact us today to enhance your projects with our trusted digital temperature sensor solutions and receive expert technical support tailored to your needs.
Q: Where physically on the device does the temperature measurement take place?
A: The DS18B20 does not sense temperature directly through the package. For all package types, the DS18B20 senses temperature primarily through the GND pin. Ensuring a good thermal connection between the GND pin of the device and the heat source you wish to measure will provide the best results.
Q: Is there a way to extend the temperature range of the DS18B20?
A: No, there is not a way to increase the range it reads. The DS18B20 reads with an accuracy of ±0.5°C from -10°C to +85°C and ±2°C accuracy from -55°C to +125°C.
Q: Will a conformal coating affect the thermal response of the DS18B20?
A: A thin conformal coating will not affect the thermal response of the device.
Q: Using OneWireViewer, can more than one DS18B20 be logged?
A: Yes, every DS18B20 will have a file where you can store the data. Data will be received from one DS18B20 at a time.
Q: Can you power the DS18B20 from a 3V battery?
A: The DS18B20 can be powered from any source. Since batteries will dip in voltage, a nominal 3V battery may not always supply the minimum 3.0V the DS18B20 requires. We suggest a step-up voltage regulator is used to ensure the device is supplied within its rated voltage range of 3.0V to 5.5V.
