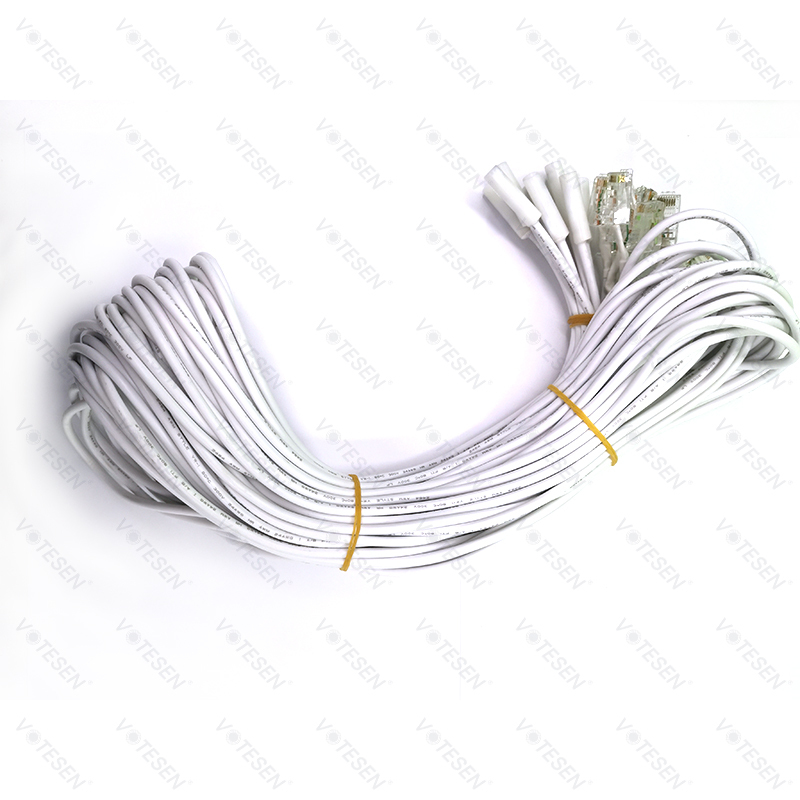

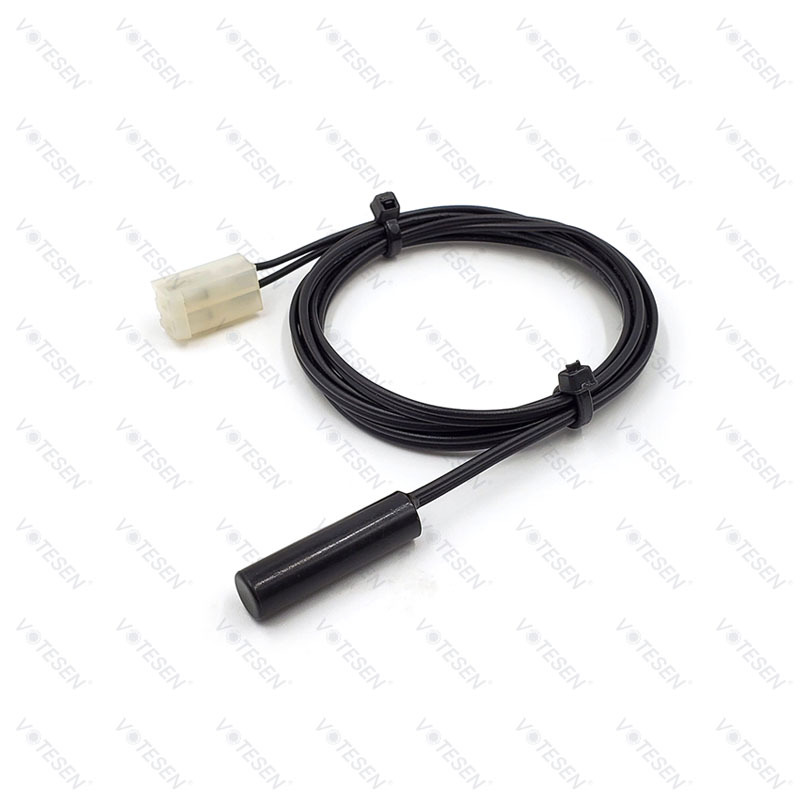

Waterproof Plastic Head DS18B20 Digital Temp Sensor In Damp Environment

Plastic head Waterproof thermal Temperature Probe In Damp Environment
We have 20 years of experience in custom fabrication of digital temperature sensors. You can customize NTC temperature sensors, RTD temperature sensors, digital temperature sensors (DS18B20), temperature sensors (KTY-81/LM35, etc), and temperature modules as required.
Votesen VTS200 is a DS18B20 digital temperature sensor which composed of original DALLAS chip, Plastic temperature probe, cable and connector.
ABS material, the advantage is that we can customize all kinds of diameter, all kinds of length of tube size which customer request. Plastic temperature probe is not easy to rust, corrosion resistance, acid and alkali resistance super waterproof.



1.Digital Signal Output
One Wire interface requires only one port pin for communication. Requires no external components, ideal for simple integration of the digital temperature sensor.

2.High Accuracy
Operating temperature range: -55°C to +125°C (-67F to +257F), ±0.5°C accuracy from -10°C to +85°C, ensuring reliable precision for the digital temp sensor.

3.Data Line Power Supply
Can be powered from data line. Power supply range is 3.0V to 5.5V, supporting stable operation of the temperature probe.

4.Fast Response
Thermometer resolution is programmable from 9 to 12 bits, providing quick and precise temperature readings for the digital temperature sensor.

5.Various Probe Design
Probe dimension: Can be customized to meet diverse requirements of your temperature probe application.

Send us the below details and we will be able to assist you based on your requirements.

1. Operation Temperature range

2. Application

3. Probe Dimension

4. Types of Probe

5. Cable Length

5. Cable Connector

6. Any other specific request



Applicable to air conditioning, refrigerator, induction cooker, toaster, oven, electric oven, microwave oven, electric fan, soybean milk machine, electric water heater, rice cooker, disinfection cabinet, water dispenser, lighting appliances and other household appliances temperature measurement and thermal protection circuit.

In addition to industrial and agricultural, medical, meteorological, environmental protection, food processing and other equipment in the temperature measurement and control circuit, automation office appliances.

VOTESEN, headquartered in Xi’an—one of China’s major sensor manufacturing hubs—was established in 2018 and has since grown into a leading supplier of advanced sensor technologies. We specialize in the research, development, and customization of digital temperature sensors, humidity sensors, pressure sensors, and more, serving industries including industrial automation, automotive electronics, medical health, and environmental monitoring. Our products meet CE and RoHS certification standards, guaranteeing safety and reliability. VOTESEN’s global footprint extends to over 150 countries, offering OEM/ODM services and professional technical support. Our dedication to innovation and quality drives us to continuously optimize sensor production technologies, ensuring customer satisfaction and long-term partnerships.

Choose the VOTESEN Waterproof Digital Temperature Sensor for reliable, accurate temperature monitoring in challenging environments. Contact us now to discuss your project needs and benefit from our expert support and competitive pricing.





Q: Where physically on the device does the temperature measurement take place?

A: The DS18B20 does not sense temperature directly through the package. For all package types, the DS18B20 senses temperature primarily through the GND pin. Ensuring a good thermal connection between the GND pin of the device and the heat source you wish to measure will provide the best results.

Q: Is there a way to extend the temperature range of the DS18B20?

A: No, there is not a way to increase the range it reads. The DS18B20 reads with an accuracy of ±0.5°C from -10°C to +85°C and ±2°C accuracy from -55°C to +125°C.

Q: Will a conformal coating affect the thermal response of the DS18B20?

A: A thin conformal coating will not affect the thermal response of the device.

Q: Using OneWireViewer, can more than one DS18B20 be logged?

A: Yes, every DS18B20 will have a file where you can store the data. Data will be received from one DS18B20 at a time.

Q: Can you power the DS18B20 from a 3V battery?

A: The DS18B20 can be powered from any source. Since batteries will dip in voltage, a nominal 3V battery may not always supply the minimum 3.0V the DS18B20 requires. We suggest a step-up voltage regulator is used to ensure the device is supplied within its rated voltage range of 3.0V to 5.5V.
